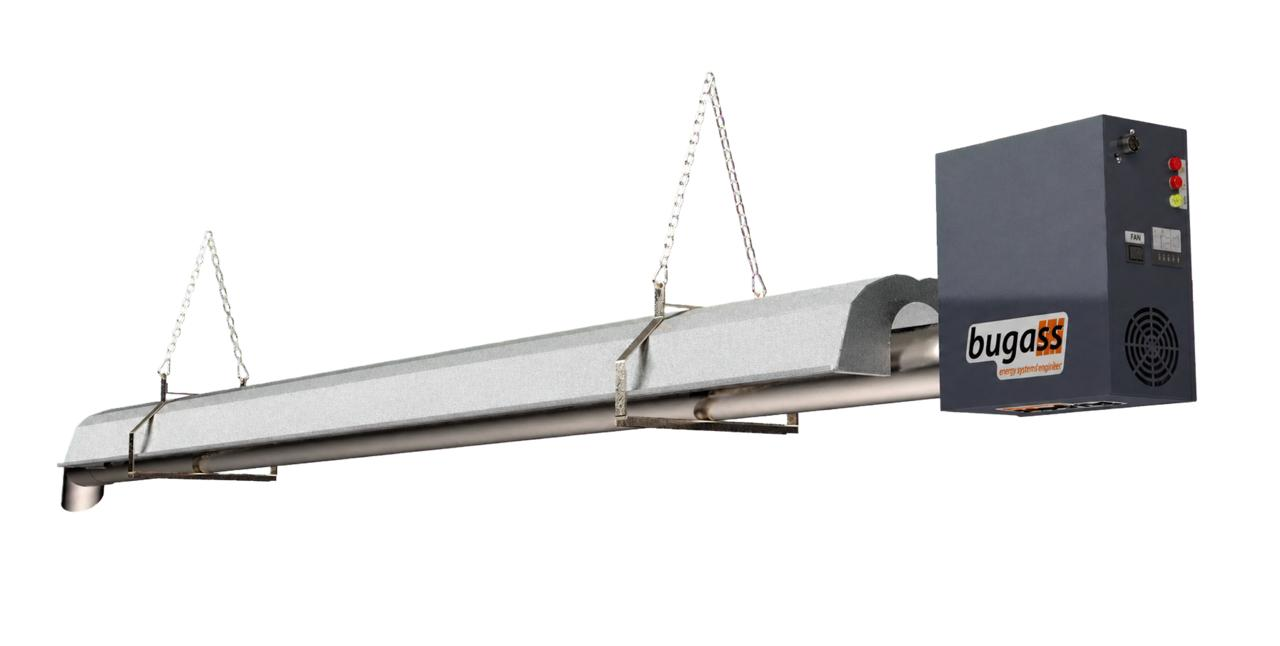

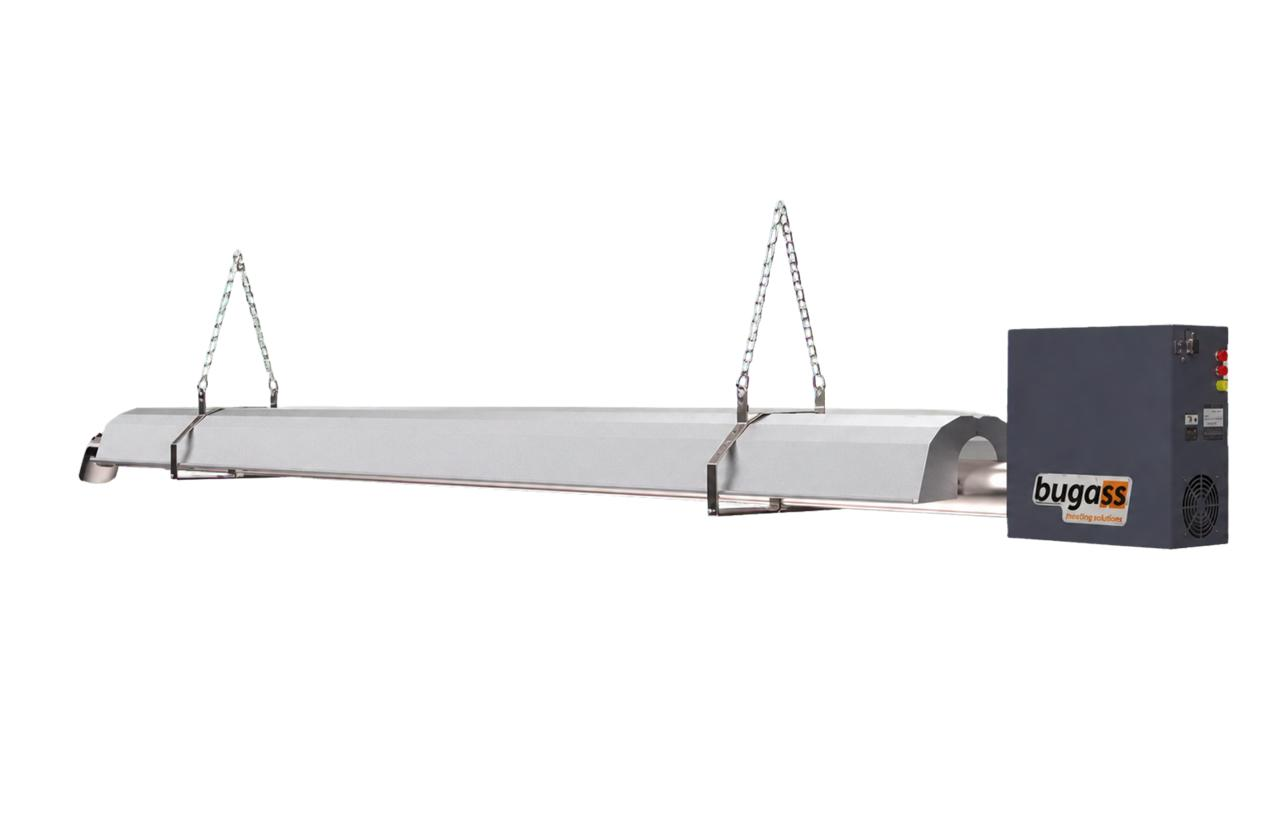

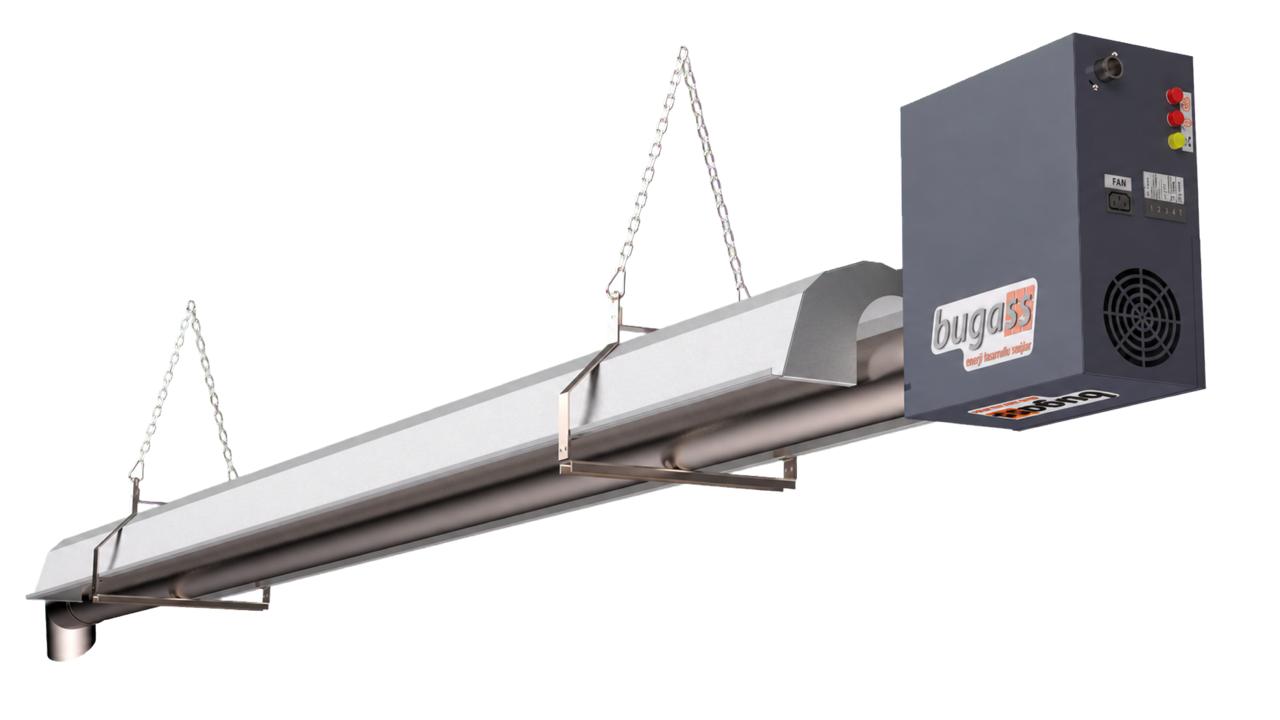

BUGASS · BRL SERIES
Linear Radiant Tube Heater
A smart way to direct heat exactly where it is needed in large spaces.
Rather than heating all of the air in tall, large-volume buildings, the Bugass BRL Series heats people, floors and work zones directly. It offers a controlled, comfortable solution tailored to each project, for both general and zoned heating in factories, warehouses, hangars and production areas.
- Output range
- 10–55 kW
- Fuel
- Natural gas / LPG
- Heating type
- Linear radiant
OVERVIEW
Targeted heating comfort with the BRL Series
Bugass BRL Series radiant tube heaters deliver effective heating in large, high-ceilinged spaces such as factories, warehouses, sports halls, hangars, supermarkets and exhibition halls. Their linear design lets you heat the entire area or only the zones that need it, as each project requires.
Heat generated in the burner travels in a controlled way along a special radiant tube and reaches people, floors and surrounding surfaces directly as infrared radiation. Instead of heating all of the air, it targets the points that need warmth.
The Bugass BRL Series is a powerful, flexible and reliable solution for general area heating as well as zoned and spot applications.
BUGASS BRL · PRODUCT ADVANTAGES
Performance, flexibility and control
The key advantages that make the Bugass BRL Series a strong choice for industrial projects.
- Targeted Linear Heating Directs heat to the zones that need it in long, high-ceilinged spaces. 01
- Tube Layout to Suit the Project Single- and double-tube options adapt to different layouts and capacity needs. 02
- Easy, Controlled Operation A remote control gives quick, easy access to operating settings. 03
- Industrial Durability A robust, reliable and long-lasting system built for demanding operating conditions. 04
ENGINEERING DETAILS
Advanced engineering of the BRL Series
Verified product data and project-focused engineering details.
-
01
Three-stage heat setting
Three operating stages to match heat demand.
-
02
12–58 kW range per technical table
Verified values for models BRL-6L through BRL-9U.
-
03

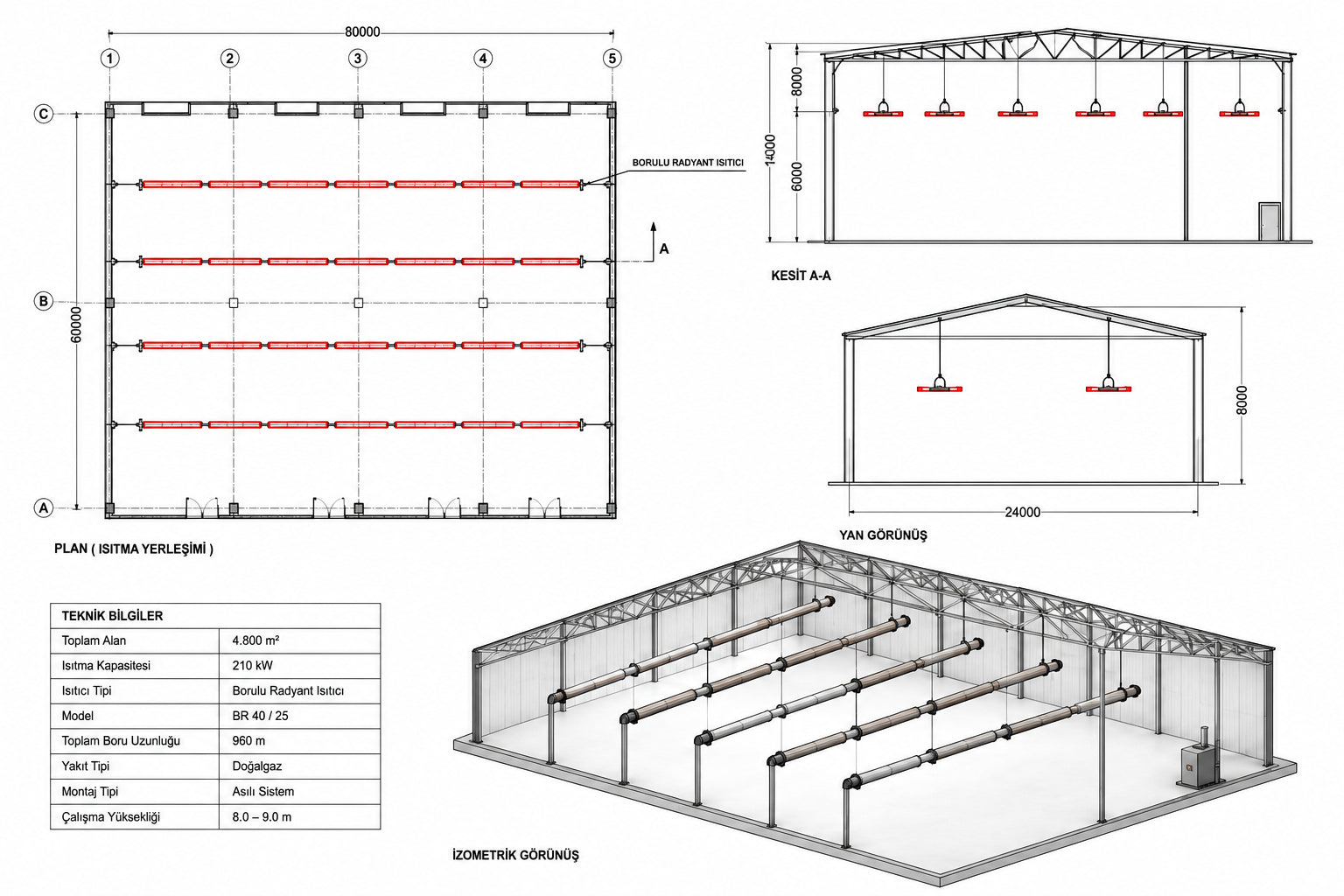

Flexible linear layout
Single- and double-tube models allow different layout arrangements.
-
04
High-ceilinged spaces
Versatile use in factories, warehouses, hangars and long production lines.
Applications
High efficiency in the right setting
The right model is chosen based on the ceiling height, usage pattern and heat demand of each project.
-
Factories and production facilities
-
Warehouses
-
Logistics centers
- Assembly lines
- Workshops
- Hangars
- Sports halls
- High-ceilinged commercial spaces
- Open and semi-open café areas
Technical Specifications · BRL Series
Scroll the table horizontally to see all BRL models
| Models | BRL15 | BRL20 | BRL25 | BRL30 | BRL35 | BRL40 | BRL45 | BRL50 | BRL55 | |
|---|---|---|---|---|---|---|---|---|---|---|
| Output (kW) | Stage 1 | 10 | 13 | 16 | 19 | 22 | 25 | 29 | 32 | 35 |
| Stage 2 | 12 | 16 | 20 | 25 | 29 | 33 | 37 | 41 | 45 | |
| Stage 3 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | |
| Dimensions & Installation Data · BRL Series | ||||||||||
| Weight (kg) | 46 | 61 | 61 | 76 | 76 | 76 | 91 | 91 | 106 | |
| Overall length (mm) | 6520 | 9520 | 9520 | 12520 | 12520 | 12520 | 15520 | 15520 | 18520 | |
| Min. recommended mounting height (m) | 2.00 | 2.25 | 2.50 | 2.75 | 3.00 | 3.25 | 3.50 | 3.75 | 4.00 | |
| Fuel Consumption & Connections · BRL Series | ||||||||||
| Gas type | Natural gas or LPG | |||||||||
| Natural gas consumption (Nm³/h) | Stage 1 | 1.00 | 1.33 | 1.66 | 1.99 | 2.32 | 2.65 | 2.98 | 3.31 | 3.64 |
| Stage 2 | 1.28 | 1.71 | 2.13 | 2.56 | 2.98 | 3.41 | 3.83 | 4.26 | 4.68 | |
| Stage 3 | 1.57 | 2.09 | 2.61 | 3.13 | 3.65 | 4.17 | 4.69 | 5.21 | 5.73 | |
| LPG consumption (kg/h) | Stage 1 | 0.78 | 1.04 | 1.30 | 1.57 | 1.83 | 2.09 | 2.35 | 2.62 | 2.88 |
| Stage 2 | 0.96 | 1.28 | 1.61 | 1.93 | 2.25 | 2.57 | 2.90 | 3.22 | 3.54 | |
| Stage 3 | 1.16 | 1.55 | 1.94 | 2.33 | 2.72 | 3.11 | 3.50 | 3.89 | 4.28 | |
| Inlet pressure (mbar) · Natural gas | 15 min. – 55 max. | |||||||||
| Inlet pressure (mbar) · LPG | 15 min. – 55 max. | |||||||||
| Gas connection | 3/4" threaded | |||||||||
| Electrical connection | 230 V, single-phase, 1 A | |||||||||
| Fan power (W) | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | |
| Ignition | Fully automatic, with flame sensor | |||||||||
| Combustion & radiant tubes | 101.6 mm diameter heat-treated aluminized steel tube | |||||||||
| Reflector | NS3H14 aluminum | |||||||||
| Flue outlet diameter (mm) | 101.6 | |||||||||
| Installation & Safety Clearances · BRL Series | ||||||||||
| Minimum clearances to combustibles (cm) | Above | 15 | 15 | 15 | 15 | 15 | 15 | 20 | 20 | 20 |
| Sides | 75 | 80 | 85 | 90 | 95 | 100 | 110 | 120 | 130 | |
| Below | 150 | 160 | 170 | 170 | 170 | 170 | 200 | 200 | 220 | |
Note: Values are the manufacturer's technical data. Site conditions should be assessed separately before design and installation.
Engineering Support
Let's size the BRL Series for your project.
Together we'll review ceiling height, usage pattern and operating conditions to select the right system.
Tell Us About Your Project
Technical documents
Files for your project
Published documents open directly; for any missing document, request it from our technical team, stating the product series.
Data sheet Available on request
Installation & user manual Available on request
Product catalog Available on request
System selection for your project
