BS Series

Ceramic Radiant Heater

BUGASS BS Series ceramic radiant heaters come with remote control and a three-stage heat setting. They provide comfortable, fast and targeted heating in open and semi-open spaces.

Output range
8–18 kW
Fuel
Natural gas / LPG
Efficiency
3 stages
Control
3-Stage Control
Request a quote Request data sheet

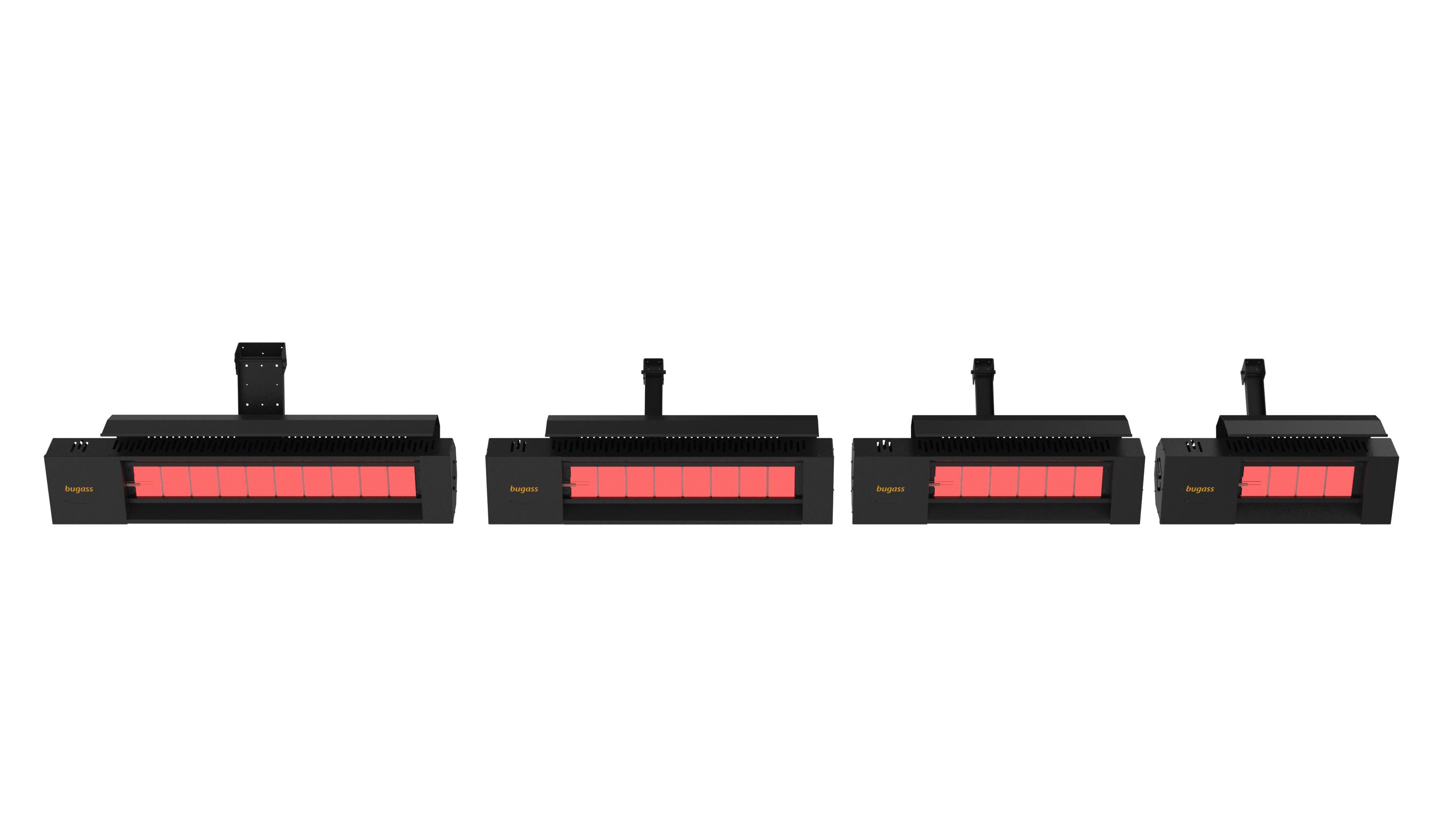

BS Series ceramic radiant heaters with black housing
BS Series · Ceramic Radiant Heater

Overview

Controlled, reliable heating with the BS Series

BUGASS BS Series ceramic radiant heaters come with remote control and a three-stage heat setting. They provide fast, targeted heating in open and semi-open spaces.

Ceramic radiant technology directs heat to where it is needed, while 8, 12 and 18 kW output options suit projects of different sizes.

Product advantages

Performance, durability and control

Core product features developed for real project conditions.

  • Remote Operation Easy access to heat stages with remote control.
  • Three Heat Stages Three operating stages to match heat demand.
  • Ceramic Radiant Technology A ceramic surface that delivers fast, targeted heat.
  • Built for Open Areas Designed for open and semi-open spaces.

ENGINEERING DETAILS

Advanced engineering of the BS Series

Verified product data and project-focused engineering details.

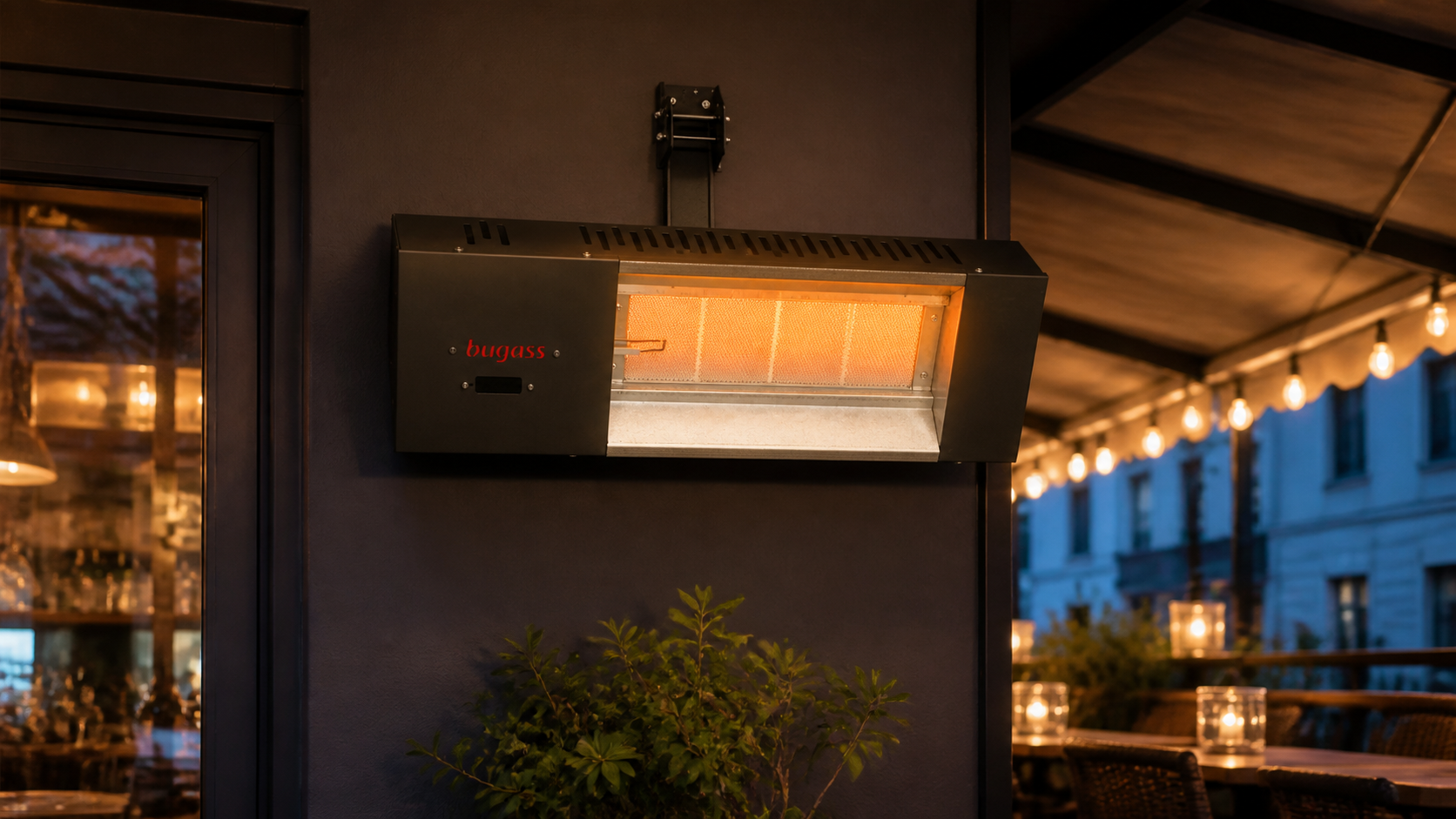

BUGASS BS Series ceramic radiant heater installed on a terrace
BS Series · Technical reference
  1. 01

    8–18 kW output options

    Three verified output options with the BS-4, BS-6 and BS-10 models.

  2. 02

    Quiet operation

    Quiet operation suited to comfort areas.

  3. 03

    2.2–3 m mounting height

    Mounting height range verified for each model.

  4. 04

    Open ceramic surface (no glass)

    A radiant operating principle that directs heat straight to where it is needed.

Applications

High efficiency in the right setting

The right model is chosen based on the ceiling height, usage pattern and heat demand of each project.

  • Open areas Open areas
  • Semi-open areas Semi-open areas
  • Cafés and restaurants Cafés and restaurants
Other suitable applications
  • Terraces
  • Commercial premises

Technical specifications

BS Series model comparison

Scroll the table horizontally to compare all models.

Scroll the table horizontally to see all BS models

BS Series technical specifications: BS-4, BS-6 and BS-10 models
Product code BS-4 BS-6 BS-10
Output (kW) Stage 1 6812
Stage 2 71015
Stage 3 81218
Heating area (m²) 11–3426–5539–82
Natural gas consumption (m³/h) Stage 1 0.630.841.26
Stage 2 0.731.051.58
Stage 3 0.841.261.89
Recommended mounting height (m) 2.02.22.5
Natural gas inlet pressure (mbar) 18–5518–5518–55

* Heating area values may vary with indoor or outdoor use, wind exposure, insulation, ceiling height and local climate.

Engineering Support

Let's size the BS Series for your project.

Together we'll review ceiling height, usage pattern and operating conditions to select the right system.

Tell Us About Your Project
BUGASS BS Series ceramic radiant heaters with black housing

Technical documents

Files for your project

Published documents open directly; for any missing document, request it from our technical team, stating the product series.

Data sheetAvailable on request Installation & user manualAvailable on request Product catalogAvailable on request
Data sheet Available on request
Installation & user manual Available on request
Product catalog Available on request
