BX Series

Gas-Fired Warm Air Heaters

Developed by Bugass and made in Türkiye, the BX Series gas-fired warm air heaters are designed to deliver fast, even and highly efficient heating in factories, warehouses, hangars, sports halls, stores, cafés, restaurants and all enclosed commercial and industrial spaces.
Output range
15–65 kW
Fuel
Natural gas / LPG
Efficiency
93%+
Control
3-Stage Control
Request a quote Download data sheet

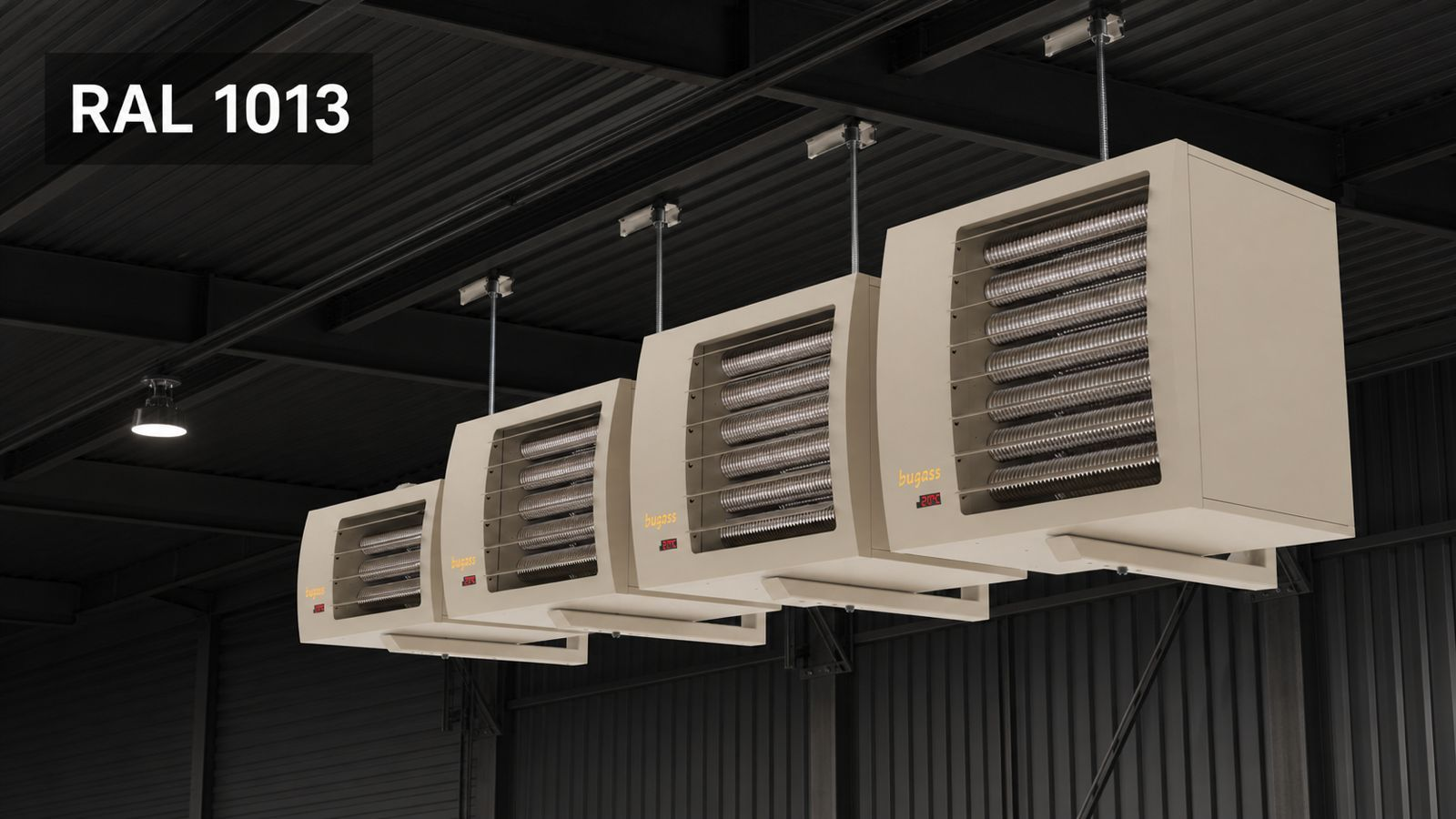

BX Series warm air heaters in RAL 1013
BX Series · Gas-Fired Warm Air Heaters

BX SERIES

High- performance, reliable and controlled heating

At Bugass, we developed the BX Series gas-fired warm air heaters for high efficiency, maximum savings and a long service life. They are built with 100% domestic engineering and manufacturing to deliver outstanding performance in even the toughest industrial conditions.

Advanced combustion technology keeps fuel consumption to a minimum while delivering even heat distribution at efficiencies of 93%+. Modular, quiet operation and a sleek, compact design let it fit into any space. A robust casing and corrosion-resistant heat exchangers ensure safe, uninterrupted heating for many years.

For factories, warehouses, production facilities, hangars, sports halls, stores, cafés & restaurants and all enclosed spaces: POWERFUL HEATING, LOW COST, MAXIMUM COMFORT!

HIGH EFFICIENCY

93%+ efficiency: less fuel, maximum heat.

SAFE & DURABLE

High-quality components and corrosion-resistant construction for a long service life.

SMART CONTROL

Keep comfort under control with precise temperature management and even heat distribution.

CAPACITY
15 – 65 kWWide capacity range
FUEL TYPE
Natural gas / LPGFlexible fuel options
EFFICIENCY
93%+High energy efficiency
DESIGNED
AND MADE
IN TÜRKİYE
Domestic engineering,
the assurance of local manufacturing.

Product advantages

Performance, durability and control

Core product features developed for real project conditions.

  • Remote Control Easy access to operating settings with remote control.
  • Staged Heat Setting Three-stage heat setting for controlled operation that matches demand.
  • High Energy Efficiency 92.8–94% energy efficiency in verified model data.
  • Even Heating Designed for balanced air distribution across large spaces.

Engineering details

Advanced Engineering

Core BX components engineered for high efficiency, safe operation and a long service life.

BX Serisi gaz kontrol valfi ve emniyet bileşeni
BX Serisi gaz kontrol valfi ve emniyet bileşeni
  1. 01

    316L Stainless Steel Spiral Heat Exchanger

    The 316L stainless steel spiral heat exchanger delivers high heat transfer for maximum efficiency, a long service life and superior corrosion resistance.

  2. 02

    Atmospheric Stainless Steel Burner

    The stainless steel atmospheric burner provides balanced combustion, quiet operation, low maintenance and long-lasting performance.

  3. 03

    Smart Electronic Control Unit

    The electronic control system continuously monitors ignition, flame supervision and all safety functions for safe, stable operation.

  4. 04

    High-Performance Centrifugal Fan

    The high-airflow centrifugal fan distributes warm air evenly throughout large spaces for fast, balanced heating.

  5. 05

    Industrial Safety System

    Ionization flame control, a limit thermostat, fan safety monitoring and multi-level protection ensure safe, uninterrupted operation.

Applications

High efficiency in the right setting

The right model is chosen based on the ceiling height, usage pattern and heat demand of each project.

  • Factories Factories
  • Warehouses and logistics centers Warehouses and logistics centers
  • Workshops Workshops
Other suitable applications
  • Sports halls
  • Hangars
  • Agricultural and livestock facilities
BUGASS - saves energy

BX Series

Gas-Fired Warm Air Units

Technical Specifications
High Efficiency Safe Heating

Scroll horizontally to see all models

BX Series technical specifications by model
Specification BX-15 BX-25 BX-35 BX-45 BX-55 BX-65
Output (kW) 15 25 35 45 55 65
Consumption (m³/h) 1.57 2.62 3.67 4.72 5.77 6.82
Noise level dB(A) 45 46 46 48 48 52
Airflow (m³/h) 3,500 3,500 3,500 4,800 5,500 5,500
Energy efficiency (%) 94 93.8 93.5 93.3 92.9 92.8
Heating volume (m³) 150–240 240–390 390–510 510–630 630–750 750–870
Weight (kg) 34 34 39 44 49 54
NOx class 4
Power supply 230V 50Hz
Gas inlet 20 mbar
Type B1

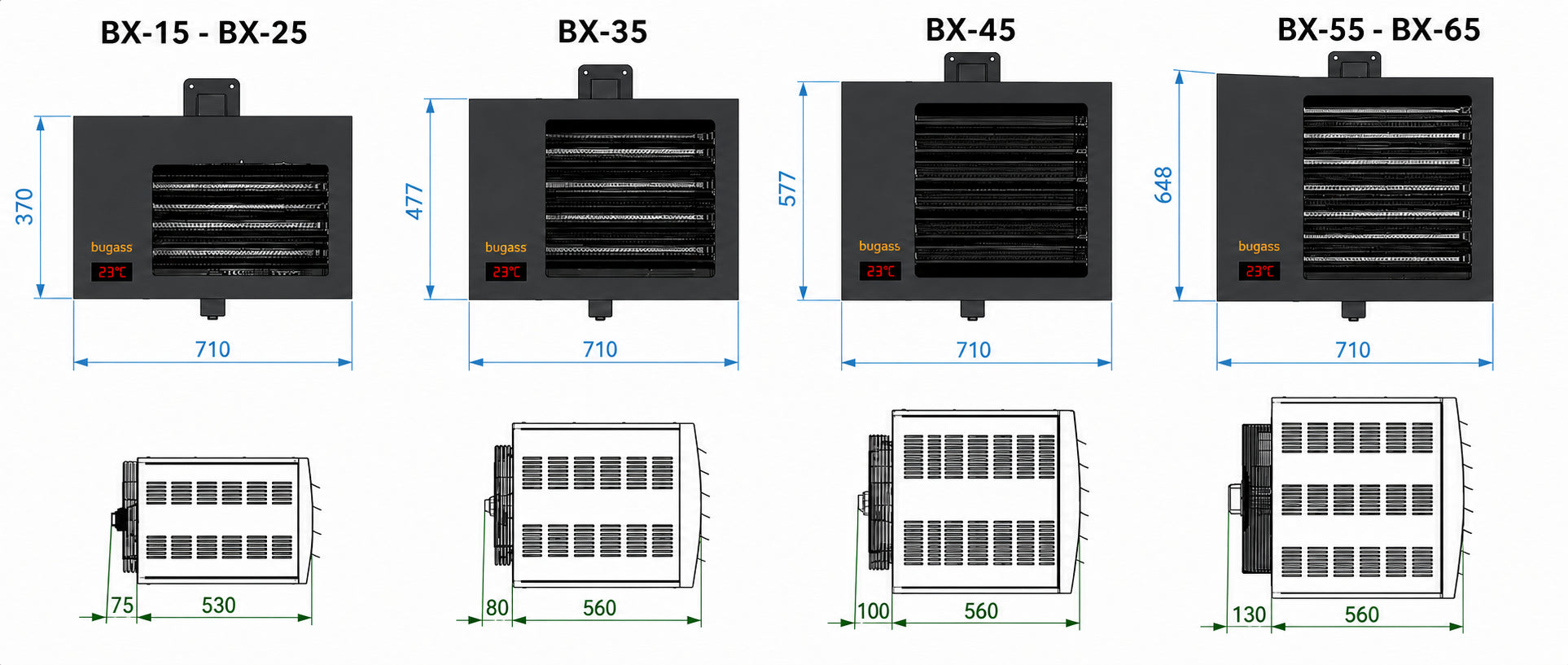

Dimensions (mm)

Dimensioned front and side views of the BX-15, BX-25, BX-35, BX-45, BX-55 and BX-65 models

Dimensions Table (mm)

BX Series dimensions table, in millimeters
Model Height
(H)		 Width
(W)		 Depth
(D)		 Side
projection (L)
BX-15 - BX-2537071053075
BX-3547771056080
BX-45577710560100
BX-55 - BX-65648710560130

* The manufacturer reserves the right to change technical specifications without prior notice.

Engineering Support

Let's size the BX Series for your project.

Together we'll review ceiling height, usage pattern and operating conditions to select the right system.

Tell Us About Your Project

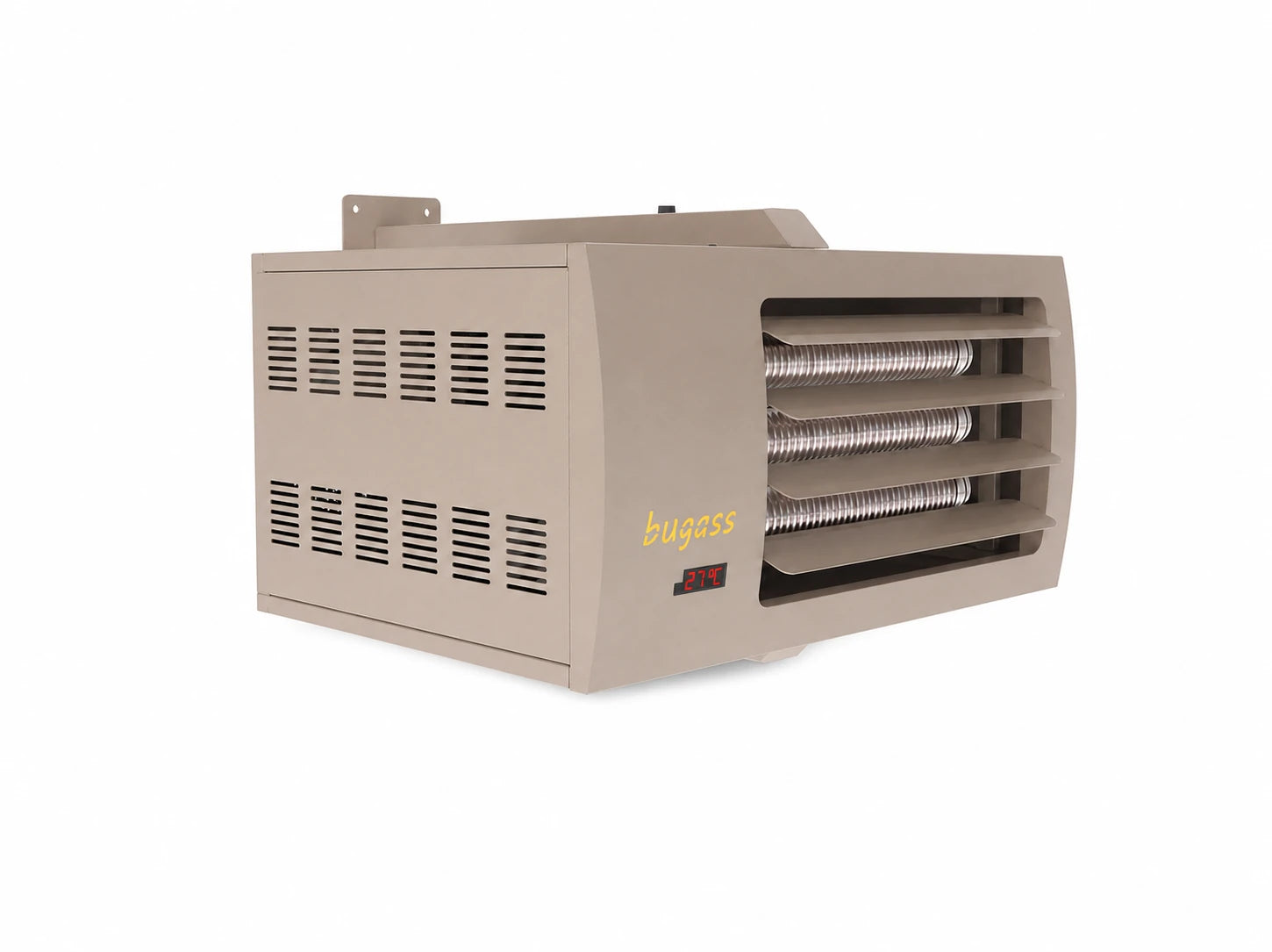

BX Series gas-fired warm air unit

Technical documents

Files for your project

Published documents open directly; for any missing document, request it from our technical team, stating the product series.

Data sheetPDF · Available · Turkish Installation & user manualAvailable on request Product catalogAvailable on request
Data sheet PDF · Available · Turkish
Installation & user manual Available on request
Product catalog Available on request
